BRASS WIRE MESH / CLOTH

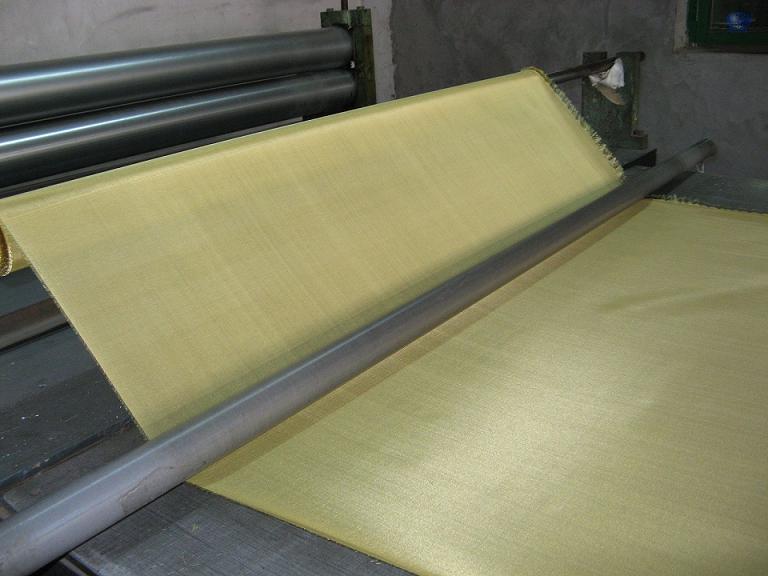

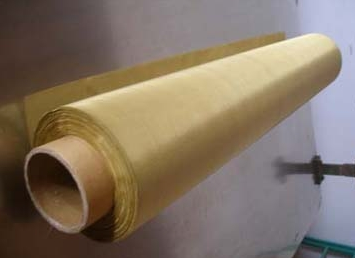

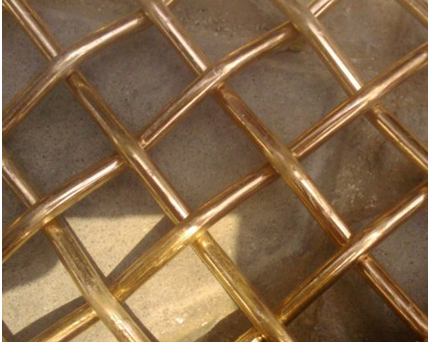

Brass wire mesh (cloth), phosphor bronze wire mesh (cloth) and copper wire mesh (wire cloth) are also common woven wire mesh

Metalspec provides good quality woven wire mesh and wire cloth in brass, phosphor bronze, copper, stainless steel and silver at very good price.
Brass wire mesh (cloth) and phosphor bronze wire mesh (wire cloth) are frequently used as sieving and filtering materials in screening pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.

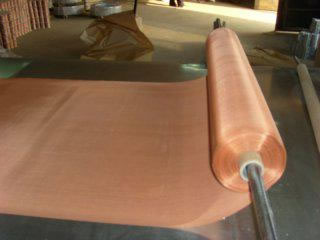

Brass wire mesh and wire cloth possess greater strength than copper wire mesh or bronze wire mesh. Copper wire cloth finds wide usage in traveling water screens, radio frequency interference shielding, sugar and marine applications.







Mesh	Wire Dia. (MM)			Opening(mm)
	SWG	mm	inch
6mesh	22	0.711	0.028	3.522
8mesh	23	0.610	0.024	2.565
10mesh	25	0.508	0.020	2.032
12mesh	26	0.457	0.018	1.660
14mesh	27	0.417	0.016	1.397
16mesh	29	0.345	0.014	1.243
18mesh	30	0.315	0.012	1.096
20mesh	30	0.315	0.0124	0.955
22mesh	30	0.315	0.0124	0.840
24mesh	30	0.315	0.0124	0.743
26mesh	31	0.295	0.0116	0.682
28mesh	31	0.295	0.0116	0.612
30mesh	32	0.247	0.011	0.573
32mesh	33	0.254	0.010	0.540
34mesh	34	0.234	0.0092	0.513
36mesh	34	0.234	0.0092	0.472
38mesh	35	0.213	0.0084	0.455
40mesh	36	0.193	0.0076	0.442
42mesh	36	0.193	0.0076	0.412
44mesh	37	0.173	0.0068	0.404
46mesh	37	0.173	0.0068	0.379
48mesh	37	0.173	0.0068	0.356
50mesh	37	0.173	0.0068	0.335
60X50mesh	36	0.193	0.0076	-
60X50mesh	37	0.173	0.0068	-
60mesh	37	0.173	0.0068	0.250
70mesh	39	0.132	0.0052	0.231
80mesh	40	0.122	0.0048	0.196
90mesh	41	0.112	0.0044	0.170
100mesh	42	0.012	0.004	0.152
120X108mesh	43	0.091	0.0036	-
120mesh	44	0.081	0.0032	0.131
140mesh	46	0.061	0.0024	0.120
150mesh	46	0.061	0.0024	0.108
160mesh	46	0.061	0.0024	0.098
180mesh	47	0.051	0.002	0.090
200mesh	47	0.051	0.002	0.076
