FLAT WELDED SCREENS |

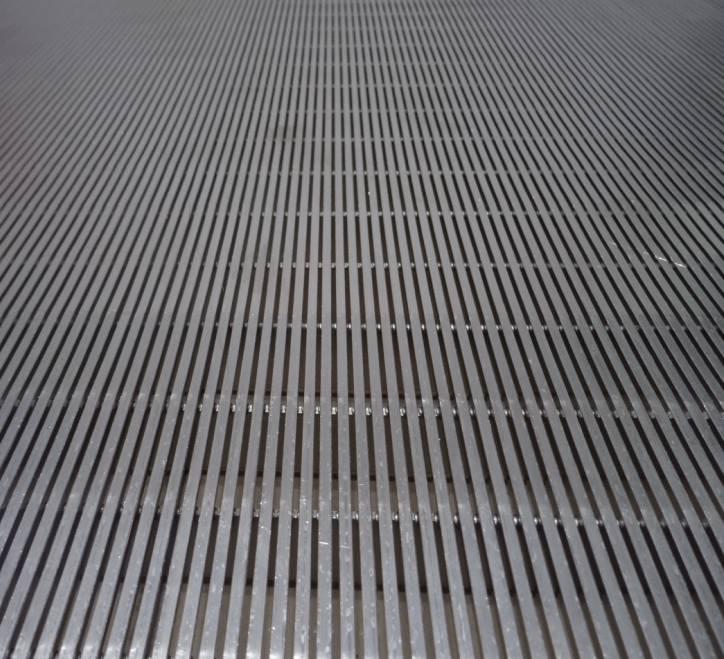

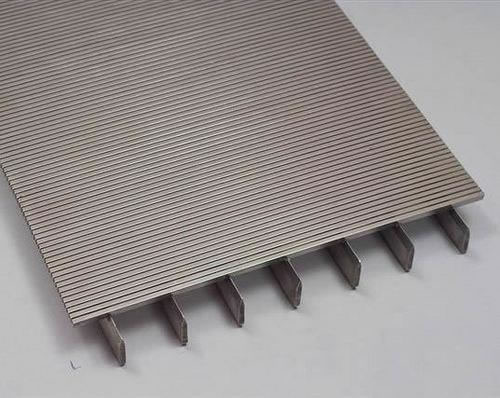

Flat Welded Screens have the structure of the surface profiles are welded onto support profiles at each intersection at 90¡ã angles.
Flat Welded Screen Standard constructions
Flat Welded Screens with dimensions other than those given below are available on request.
The designation for a Flat Welded Screen is for instance: 22S/Q35 - 70
22S = surface wire
Q35 = support wire
70 = distance between support wires in mm
Flat Welded Screens Dimensions
For pitch 17-25 mm: Max. surface profile length: 3000 mm
Max. support profile length: 3000 mm
Flat Welded Screens Finishing
Standard finish:
flattening
cutting width and length to fit required size
Optional finish:
deburring
post-machining for tighter tolerances
degreasing and pickling
Flat Welded Screens Frames and reinforcements
Flat Welded Frames can be welded onto frames or be reinforced by Longjia. This is available on request.
Final products manufactured with flat screens
Basically the same products are manufactured with flat screens as with flat welded screens. If for strength reasons the pitch of the support profiles has to be decreased Flat Screens are used instead of the Flat Welded Screens.
Flat Welded Screens Profile combinations Surface profiles Support profiles Min.slot opening Min. pitch in mm Max. pitch in mm 10S Q25 0.030 5 17 11S Q25 0.030 5 17 12S Q35 0.050 8,5 25 18S Q35 0.050 8,5 25 18S 10x3/25x3 0.200 17 25 22S Q25 0.100 8,5 22 22S 10x3 0.200 17 25 28S Q35/D45/25x3 0.200 17 25 34S Q35/10x3/25x3 0.200 17 25 42S Q35/10x3/25x3 0.200 17 25 42S 38x3 0.200 25 25 pitch = distance between support profiles
